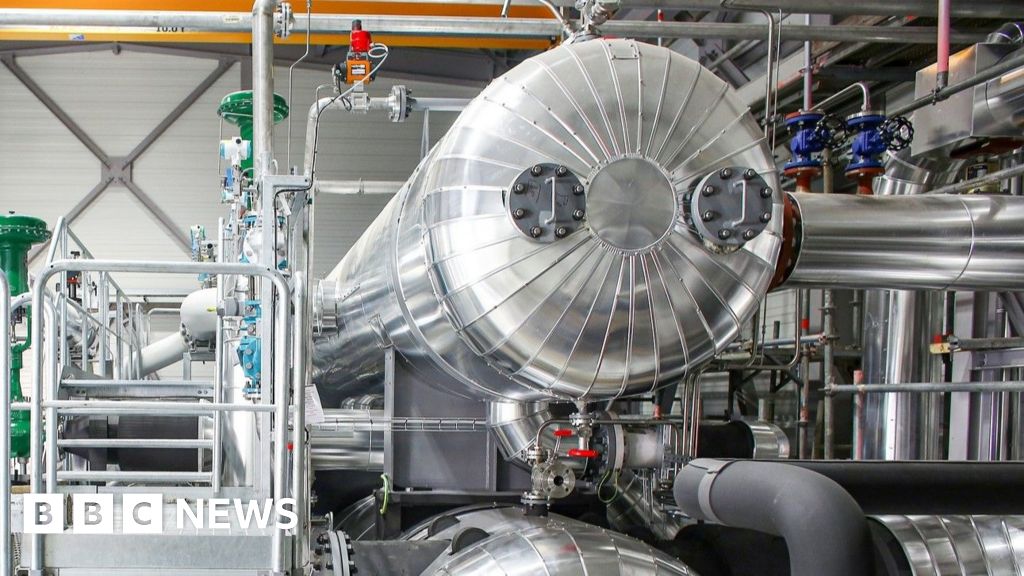

The large warmth pumps designed to heat complete districts

The pipe that may provide the warmth pump, drawing water from the River Rhine in Germany, is so large that you can stroll by means of it, absolutely upright, I am informed.

“We plan to take 10,000 litres per second,” says Felix Hack, mission supervisor at MVV Setting, an vitality firm, as he describes the 2m diameter pipes that may suck up river water in Mannheim, after which return it as soon as warmth from the water has been harvested.

In October, father or mother agency MVV Energie introduced its plan to construct what may very well be essentially the most highly effective warmth pump modules ever. Two items, every with a capability of 82.5 megawatts.

That is sufficient to produce round 40,000 houses, in complete, through a district heating system. MVV Energie goals to construct the system on the positioning of a coal energy plant that’s changing to cleaner applied sciences.

The dimensions of the warmth pumps was decided partly by limits on the dimensions of equipment that may very well be transported by means of the streets of Mannheim, or probably through barges alongside the Rhine. “We’re undecided about that but,” says Mr Hack. “It would come through the river.”

One individual properly conscious of the mission is Alexandre de Rougemont, at Everllence (previously MAN Power Options), one other German firm that additionally makes extraordinarily giant warmth pumps. “It’s a competitors, yeah,” he says. “We’re open about it.”

Warmth pumps take in warmth from the air, floor or, in these circumstances, our bodies of water. Refrigerants inside the warmth pumps evaporate when they’re warmed even barely.

By compressing the refrigerant, you enhance that warmth additional. This similar course of happens in warmth pumps designed to produce single houses, it simply occurs on a a lot bigger scale in big warmth pumps that serve total metropolis districts.

As cities and cities around the globe search to decarbonise, many are deciding to buy giant warmth pumps, which might connect to district heating networks.

These networks enable scorching water or steam to achieve a number of buildings, all linked up with many kilometres of pipe. Ever larger fashions of warmth pump are rising to fulfill demand.

“There was a variety of stress on us to alter the warmth technology to new sources, particularly renewable sources,” explains Mr Hack as he discusses the decommissioning of coal-fired items on the Mannheim plant. The positioning is true by the Rhine, already has a hefty electrical energy grid connection, and is plugged in to the district heating community, so it is smart to put in the warmth pumps right here, he says.

He notes that the expertise is feasible partly due to the supply of very giant compressors within the oil and fuel trade – the place they’re used to compress fossil fuels for storage or transportation, for instance.

Work on the Mannheim mission is because of begin subsequent 12 months. The warmth pumps – with a mixed capability of 162MW – are set to change into absolutely operational within the winter of 2028-29. Mr Hack provides {that a} multi-step filter system will stop the warmth pumps sucking up fish from the river, and that modelling suggests the system will have an effect on the typical temperature of the river by lower than 0.1C.

Installations similar to this aren’t low cost. The Mannheim warmth pump setup will value €200m ($2.3m; £176m). Mr de Rougemont at Everllence says that, at his firm, heat-pump tools prices roughly €500,000 per megawatt of put in capability – this doesn’t embody the extra value of buildings, related infrastructure and so forth.

Everllence is at the moment engaged on a mission in Aalborg, Denmark that will probably be much more highly effective than the system in Mannheim, with a complete capability of 176MW. It’ll use smaller modules, nonetheless – 4 44MW items – and is because of change into operational in 2027, when it can provide practically one third of all heating demand within the city.

These 44MW machines are literally the identical ones utilized in a earlier mission, now absolutely operational, to the south of Aalborg in Esbjerg. There, they do not run at most capability however reasonably provide 35MW every.

Giant scorching water storage tanks, every in a position to maintain 200,000 cubic metres of liquid, will give the system added flexibility, provides Mr de Rougemont: “When the electrical energy value is excessive, you cease your warmth pump and solely present warmth from the storage.”

Veronika Wilk on the Austrian Institute of Know-how says, “Warmth pumps and district heating programs are an awesome match.” Such programs can harvest warmth from our bodies of water and even wastewater from sewage therapy vegetation.

Dr Wilk notes that, if you use a number of giant warmth pumps on a district heating community, you acquire flexibility and effectivity. You possibly can run two out of 4 warmth pumps within the autumn, say, when much less warmth is required than through the depths of winter.

All of the programs talked about to this point harvest vitality from water sources however, much less generally, very giant warmth pumps can use the air as a warmth supply, too. Even in a comparatively chilly metropolis similar to Helsinki.

“The ocean in entrance of Helsinki is just too shallow,” explains Timo Aaltonen, senior vice chairman of heating and cooling at Helen Oy, an vitality agency. “We calculated that we would wish to construct a tunnel greater than 20km lengthy to the ocean, to get sufficient water [with a] temperature excessive sufficient.”

Helsinki is within the strategy of radically overhauling its district heating system. Town has added warmth pumps, biomass burners and electrical boilers to a 1,400km community that hyperlinks up practically 90% of buildings within the Finnish capital, provides Mr Aaltonen.

Warmth pumps convert single kilowatt hours of electrical energy into a number of kilowatt hours of warmth however electrical boilers cannot do that and are subsequently thought-about much less environment friendly.

I ask why Helen Oy determined to put in tons of of megawatts of those boilers and Mr Aaltonen says that they’re cheaper to put in than warmth pumps and having them additionally means he and colleagues do not must rely solely on the air, which is proscribed when it comes to how a lot warmth it might present at scale. Plus, the electrical boilers can assist to take in surplus renewables and supply an electrical energy grid-balancing operate, he says.

There aren’t any warmth pumps within the UK that rival the programs underneath improvement in Denmark, Germany and Finland. Nevertheless, some new district heating networks are on the best way, such because the Exeter Power Community, which is able to provide the College of Exeter and different prospects.

The minimal deliberate capability of the community is 12MW. It’ll function three 4MW air-to-water warmth pumps, with the primary unit attributable to change into operational in 2028.

Keith Baker at Glasgow Caledonian College, who researches district heating programs, says the UK has alternatives to make extra of this expertise. Water in disused mines, which maintains a comparatively steady temperature, is starting to produce bigger warmth pumps right here, for instance.

Submit-industrial and rural areas the place there’s enough house to put in warmth pumps and warmth storage tanks are “the candy spots”, he says.
